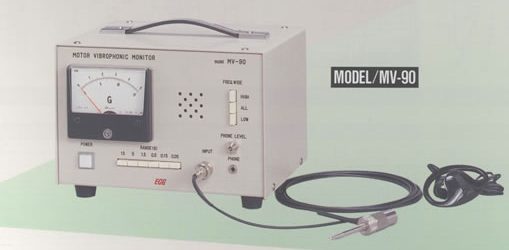

ECG-Kokusai MV-90 Motor vibrophonic monitor (Discontinued)

Product discontinued. Please see new model MV-20/20D

A very small acoustic vibration during operation can indicate a major defect in a small-sized precision motor. The acoustic vibration is normally detected using a sounding bar applied to the ear of an inspector who judges whether to reject or pass a motor by listening to its sound during operation.
This method produces different judgments according to each individual inspector, and automation is not possible. With this unit, a highly sensitive acceleration-type detector is applied to the bearing area of a motor, to directly defect the acoustic vibration.
The resultant measurement is not influenced by environmental noise, and an absolute and accurate measurement can be made. Automatic judgment of whether to reject or pass a motor is also possible by incorporating an optional comparator.

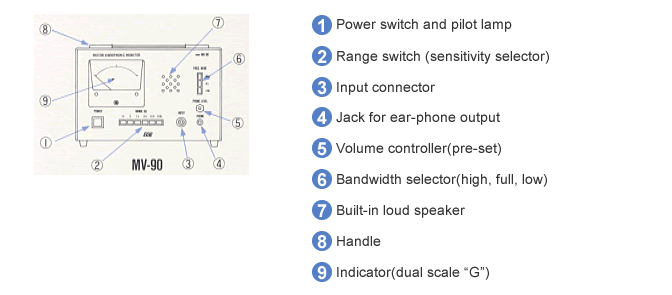

Product Description

  • The acoustic vibration is detected directly by an acceleration detector.
  • Consequently, the measurement is not affected by environmental noise.
  • The result of the measurement is displayed on a meter and sound signals are reproduced using a wide range loud speaker.
  • A frequency filter is incorporated to allow selection between full, high and low range frequencies.
    Incorporating a comparator makes automatic judgment of reject or pass.

Base unit
Frequency range3 selectable steps
1.Full bandwidth15Hz~10KHz
2.Low range15Hz~1KHz
3.High range1KHz~10KHz
Acceleration range measured0.05G~10G(6 RANGE)
Output (external output)150mWrms max. (at 4Ω)
Frequency characteristics20Hz~8KHz(±0.5dB) 15Hz~10KHz(±1.0dB)
Filter characteristics-12dB/oct
Operating temperature/humidity0℃~60℃ 30%~90%
Power sourceAC100V ± 10% 50/60Hz
Power consumption70VA max.
Dimensions of main unit200W×130H×150D
Detection methodPiezoelectric acceleration system
Electric charge sensitivityCa. 100PCMB/G
Resonant frequency20KHz min.
Operating temperature/humidity-10℃~80℃ 0%~90%
Comparator setting systemWindow comparator system
